HP9830

HP9830 Internal Photographs

By Alex Knight, May 22, 1998

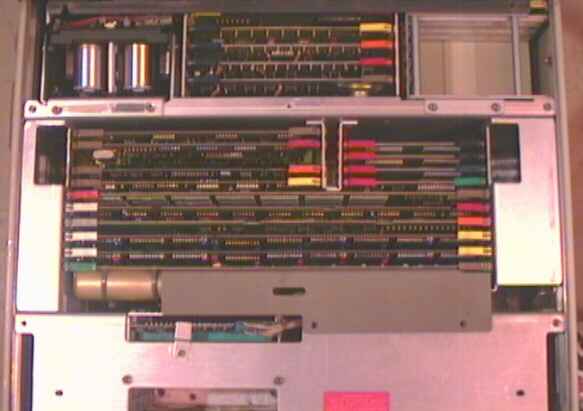

HP9830 desktop calculator with cover removed - internal cardcage:

Image of HP9830 cardcage

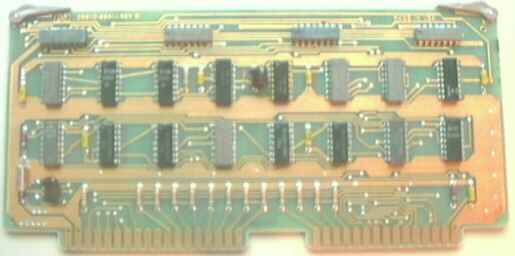

HP9830 16-bit CPU (processor) card 1 of 4 (same as in HP9810 and HP9820):

Image of HP9830 CPU card 1

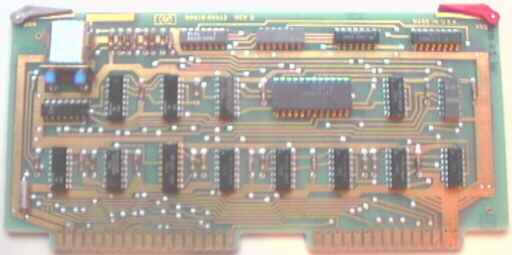

HP9830 16-bit CPU (processor) card 2 of 4 (same as in HP9810 and HP9820):

Image of HP9830 CPU card 2

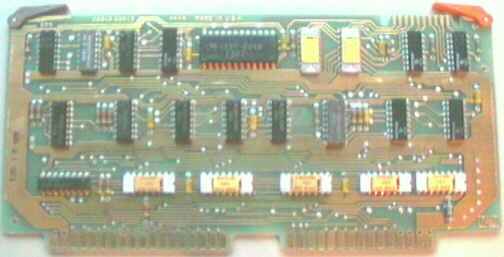

HP9830 16-bit CPU (processor) card 3 of 4 (same as in HP9810 and HP9820):

Image of HP9830 CPU card 3

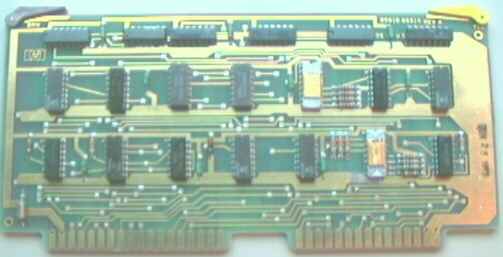

HP9830 16-bit CPU (processor) card 4 of 4 (same as in HP9810 and HP9820):

Image of HP9830 CPU card 4

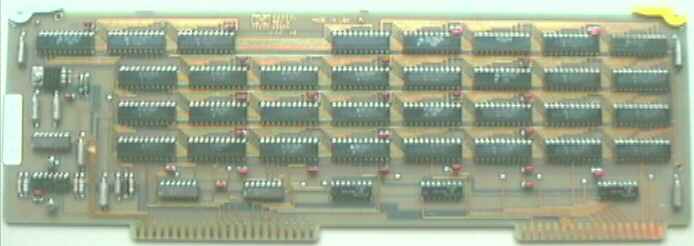

HP9830 16-bit program/data memory card :

Image of HP9830 memory card

Stay tuned for more information about the components on the card listed above and more photos of other parts of the HP9830 calculator.

Note: This Web site is not affiliated with or endorsed by the Hewlett-Packard Company
